aluPilot

The efficient fitting system for aluminium windows

Modular system approach for aluminium windows

The aluPilot modular fitting system from Winkhaus enables efficient and simple production of aluminium windows.

Manufacturers benefit from a shorter production time of around ten minutes per window unit as well as reduced process complexity. The fitting system supports common opening modes such as turn, turn-tilt and tilt before turn.

The fully-concealed aluPilot Topstar hinge side is designed as standard for sash weights of up to 130 kilograms. Additional components make it possible to install large-format aluminium windows with sash weights of up to 200 kilograms.

Winkhaus aluPilot Conept

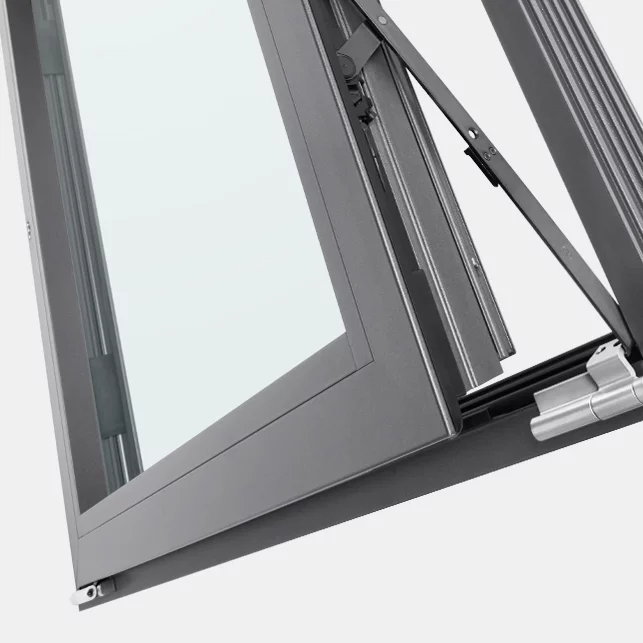

aluPilot Concept

Universal, reliable, efficient: the surface-mounted hinge side in visually appealing design. Available in different colours. Suitable for sashes weighing up to 130 kg.

Winkhaus aluPilot Topstar

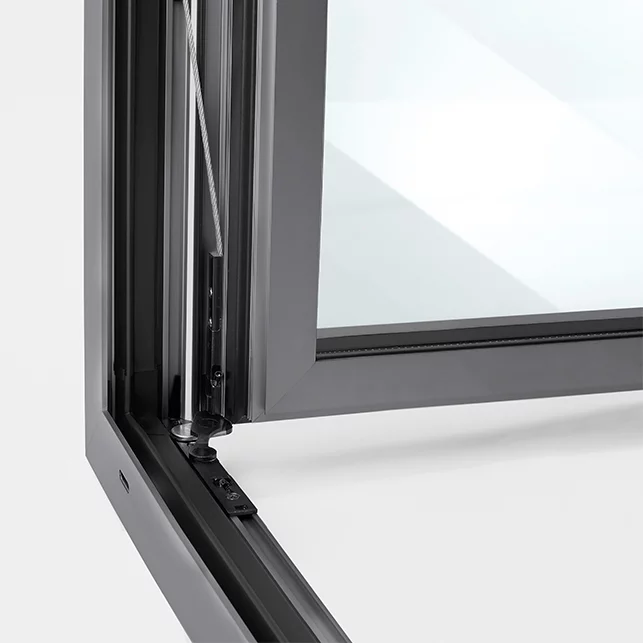

aluPilot Topstar

For a clear, aesthetic window design. With a completely concealed hinge side, which is invisible when the window is closed, this system can handle sashes weighing up to 180 kg.

Winkhaus aluPilot Giant

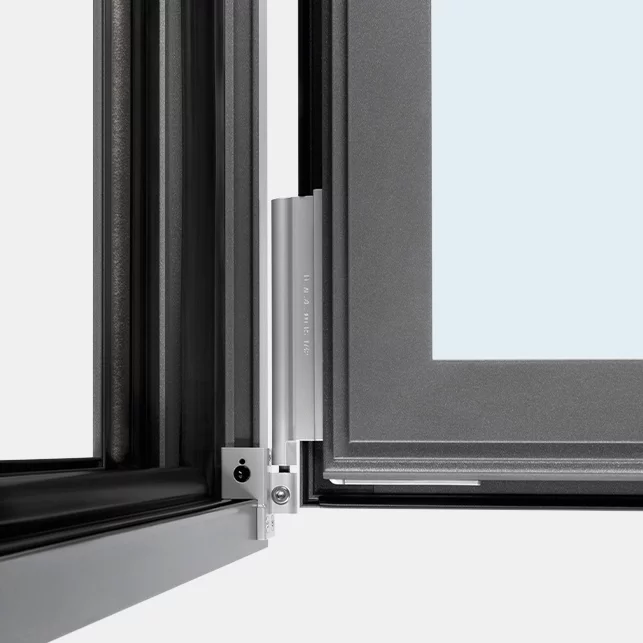

aluPilot Giant

Even the largest windows will be visually appealing with our surface mounted heavy duty hinge designed for sashes weighing up to 300kg.

Winkhaus Fensterbau 2018

Window production with a vision

Windows with concept
Efficient assembly, reduced costs

The new benchmark in processing – the flexible assembly sequence simplifies fitting installation and reduces sources of error in production.
Pre-assembled parts also reduce the number of individual components and assembly steps within a fitting set.
By the way: The QM-328 certification and classification in Corrosion Protection Class 5 confirms the product’s suitability for demanding applications and affirms its high quality.

Click. Click. Done.

No matter whether it’s used as a concealed fitting or a fitting with a surface-mounted hinge side, the aluPilot system saves time and reduces costs thanks to efficient handling.

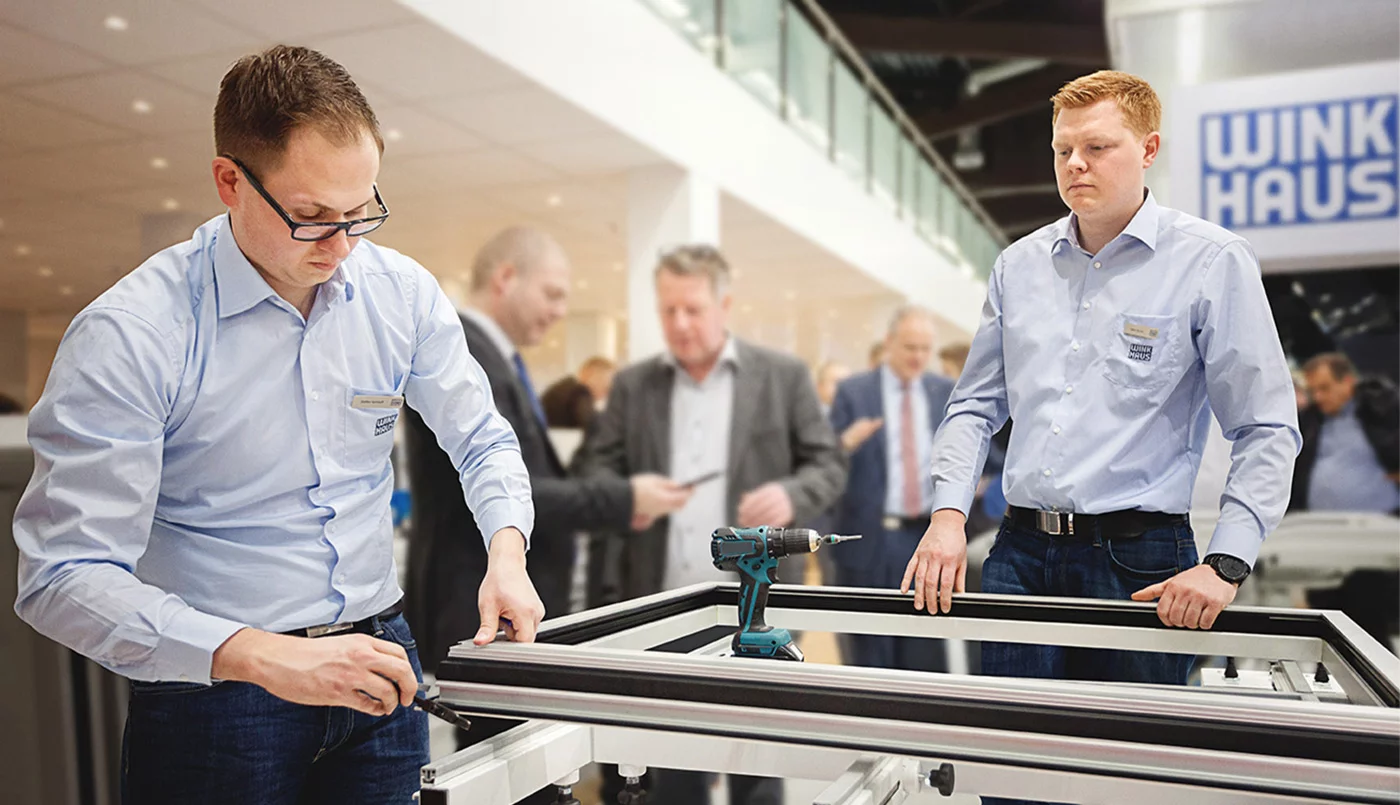

aluPilot Topstar installation

aluPilot is the flexible and efficient fitting system for aluminium windows designed for sashes weighing up to 300kg, compliance with PAS24 and up to RC3 for European specifications.

More handling advantages


Fewer work steps

Sash components are connected to one another by drive rods which are available in seven fixed lengths. This eliminates preliminary work steps such as punching and cutting connecting rods to length.


Clever tool concept

Assembly and adjustment of components requires only two tools: screwdriver and an assembly lever. Costly punching tools are not required.

Innovative mounting

All fitting components are installed in the fitting groove of the sash frame or frame from the front. This eliminates the need to punch out the sash groove.

Fewer components

Pre-assembled elements reduce the number of components in a set of fittings by up to 25%. This reduces the amount of handling effort during installation.

Easy to upgrade

For European specifications, fittings can be brought in line to qualify for resistance class RC2 in just a few extra steps. The system is merely supplemented with an additional component for RC3-compliant windows.

Quick to install

The effort needed to manufacture a standard window is reduced by up to 10 minutes. In this way the production costs of the entire window are lowered.

aluPilot Ventilation shear for turn windows

The optional aluPilot ventilation shear for turn windows provides adjustable ventilation up to 90 degrees from the closed position.

Greater convenience and
functional security

The locking force optimiser (SKU) for the aluPilot Topstar system reduces the amount of force needed to return the window sash from the tilted position to the closed position.
This solution is especially well suited to buildings with heightened accessibility requirements. The innovative module is equally well suited for heavy window elements with large formats and inconvenient handle heights.

Customised solutions for buildings

Modern architecture often breaks with traditional dimensions, shapes, and colours. Always seeking new approaches, creative outlets, and qualities.
At Winkhaus, we accompany these ideas. We know what windows and façades must be able to achieve in terms of functionality. That’s why we offer a wide range of products and can develop custom solutions for your project, whether through modification or custom design.

Winkhaus Außendienst

Intelligent packaging

In addition to the advantages for assembly on site, aluPilot offers an innovative packaging concept for simplified warehousing. Basic cartons with size-independent components or as large package units for industrial window builders. As a result, the work involved with handling the individual fitting parts is reduced, components are protected during transport and there is less waste left over.

Windows, an idea further

Special solutions for buildings

Our flexible and comprehensive system provides partner customers a great deal of freedom for future building design.

Puristic elegance

Aluminium windows are often the first choice when the façade calls for aesthetics and size. Winkhaus offers the aluPilot Topstar fitting system for elements with slimline frames, which also meet the highest standards in terms of interior design. It can be used to fit windows that are flush-mounted on the inside without visible fittings – even with large and heavy sashes weighing up to 180kg. Available as a turn, turn-tilt or tilt before turn fitting system, Winkhaus aluPilot is suitable for a wide variety of windows with an aluminium euro grooove. Visually appealing hardware – black blends almost imperceptibly into the profile. The versatility also makes it possible to fulfil individual requirements for convenience and functionality.

We have design in hand

Our plug-in handle series

Aesthetic design of the highest quality, introducing the new aluPilot window handles by Winkhaus. Their reserved appearance and small round rosette makes them a design classic, suitable for every taste and any aluminium window with Euro groove.

Flexible thanks to different versions

Our plug-in handle is available in three versions and in four surface finishes:
• Standard for turn and tilt windows
• Lockable for burglary-resistant windows
• With lock for tilt before turn windows and four surface finishes.
We also have other handle solutions in our product range in addition to the new plug-in handle.

Fitting versions at a glance

aluPilot Topstar aluPilot Concept aluPilot Giant
Fully-concealed hinge side Icons Häckchen hellblau Check
Surface-mounted fitting Icons Häckchen hellblau Check
Surface-mounted fitting
Sash weight Up to 200 kg Up to 130 kg
Sash weight for turn and tilt windows up to 200 kg
Sash width for turn and tilt windows 465 - 1635 mm 465 - 1635 mm
Sash weight turn windows up to 300 kg
Sash height for turn and tilt windows 525 – 3035 mm 525 – 2835 mm
Sash width turn windows 290 – 1635 mm 250 – 1635 mm

aluPilot Control

aluPilot Control
Combined opening and locking surveillance VdS-class C Yes
Combined opening and locking surveillance VdS-class B Yes
Opening and locking surveillance VdS-class B Yes
